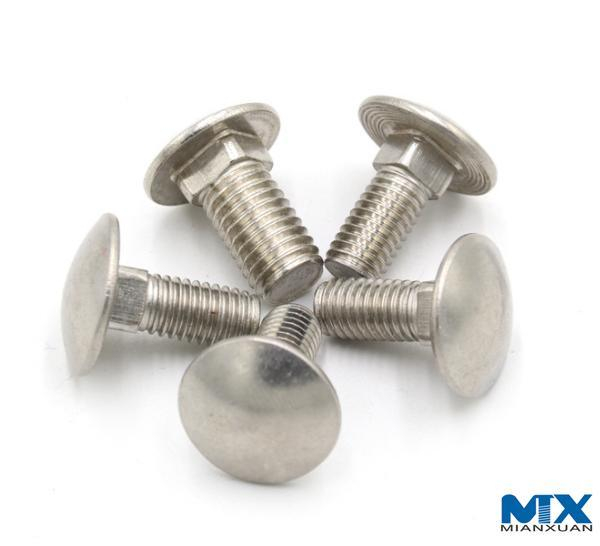

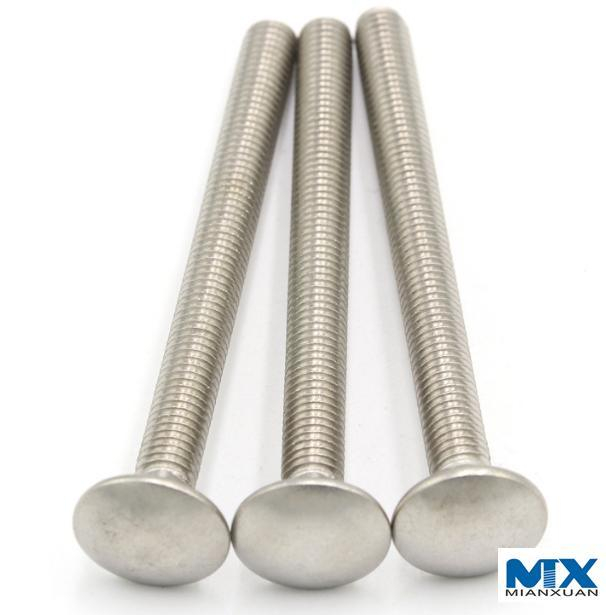

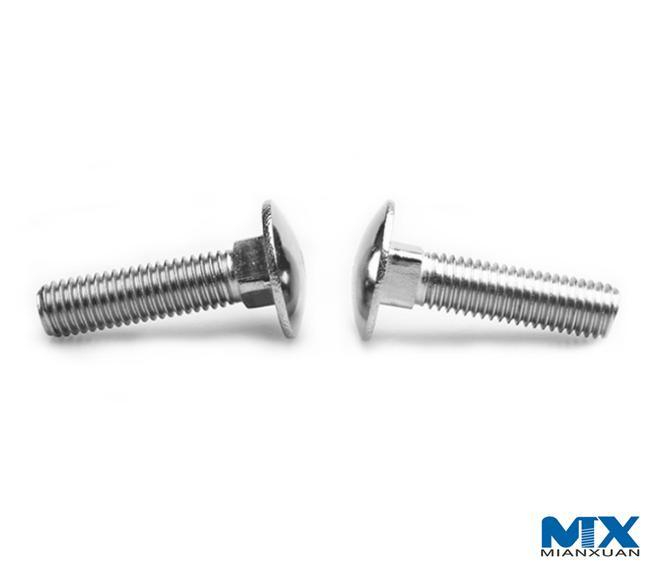

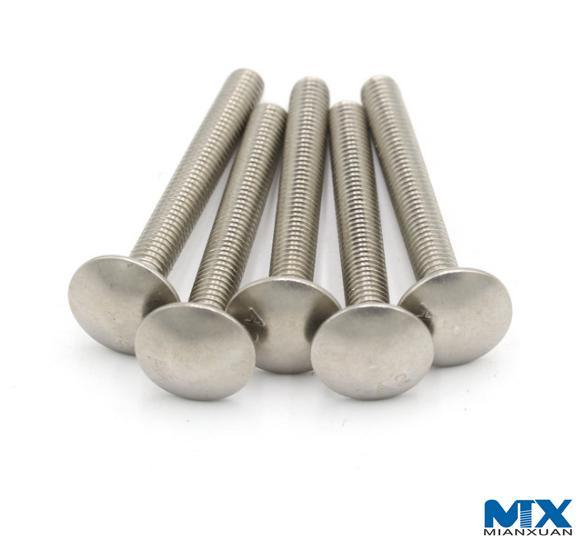

Stainless Steel Carrige Bolts/Square Neck Bolts

  • Stainless Steel

  • Mushroom Head

  • Common Bolt

Availability:
Inquire Add to Basket

Stainless Steel Carrige Bolts/Square Neck Bolts
Stainless Steel Carrige Bolts/Square Neck Bolts
Stainless Steel Carrige Bolts/Square Neck Bolts
Stainless Steel Carrige Bolts/Square Neck Bolts
Stainless Steel Carrige Bolts/Square Neck Bolts
Stainless Steel Carrige Bolts/Square Neck Bolts

Product Description

Carriage Bolts
Product Description


d
M5 M6 M8 M10 M12 M16 M20
P
b L≤125
125
L>200
dk
ds
k1
k
r1 ≈
r2
r3
s
0.8 1 1.25 1.5 1.75 2 2.5
16 18 22 26 30 38 46
22 24 28 32 36 44 52
/ / 41 45 49 57 65
13.55 16.55 20.65 24.65 30.65 38.8 46.8
12.45 15.45 19.35 23.35 29.35 37.2 45.2
5 6 8 10 12 16 20
4.52 5.52 7.42 9.42 11.3 15.3 19.16
4.1 4.6 5.6 6.6 8.75 12.9 15.9
2.9 3.4 4.4 5.4 7.25 11.1 14.1
3.3 3.88 4.88 5.38 6.95 8.95 11.05
2.7 3.12 4.12 4.62 6.05 8.05 9.95
10.7 12.6 16 19.2 24.1 29.3 33.9
0.5 0.5 0.5 0.5 1 1 1
0.75 0.9 1.2 1.5 1.8 2.4 3
5.48 6.48 8.58 10.58 12.7 16.7 20.84
4.52 5.52 7.42 9.42 11.3 15.3 19.16
DIN931 DIN933 DIN960 DIN961 DIN558 DIN601 DIN7990 DIN603 DIN912 DIN7991 size from M5-M56
Class: A2-70 A4-70 A4-80 and Various stainless steel material
Finishing: Black, Passivated
Material: SS304/SS316/SS410/SS310/B8/B8M
Packing: Small box, Bulk, Euro-pallets, special label/box etc.

Lead time: 30-50 days.
Company Profile


In case you need more info pls contact us without hesitate.
Welcome send us inquiry!
Inquirires will be offered on same day or by the 2nd working day!
Stainless Steel Carrige Bolts/Square Neck BoltsStainless Steel Carrige Bolts/Square Neck BoltsStainless Steel Carrige Bolts/Square Neck BoltsStainless Steel Carrige Bolts/Square Neck BoltsStainless Steel Carrige Bolts/Square Neck Bolts
