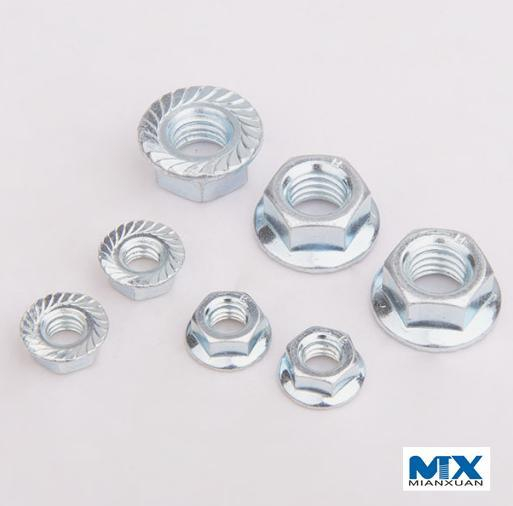

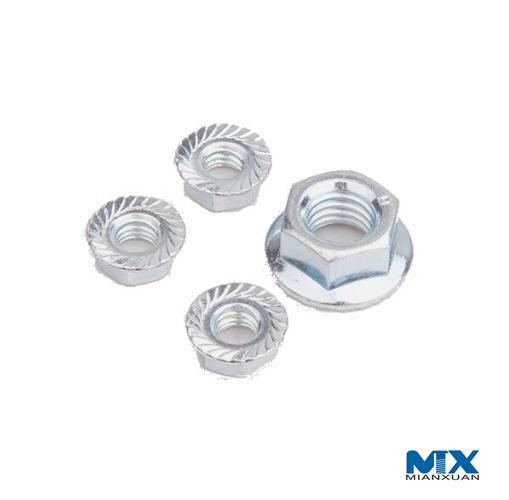

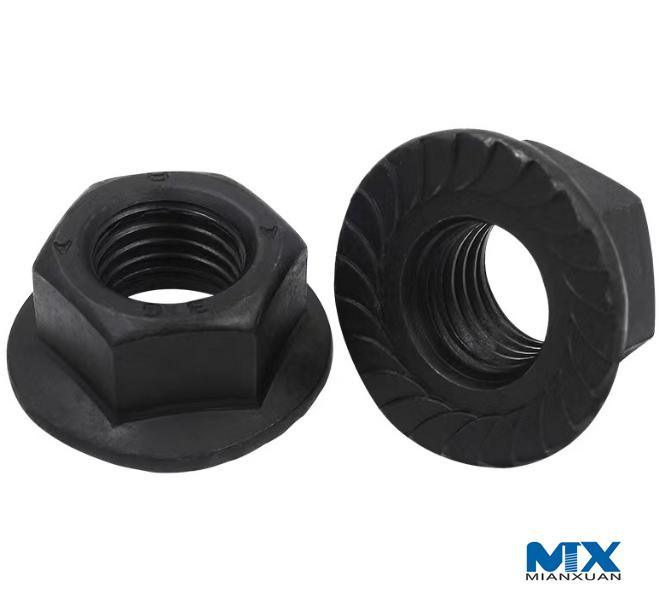

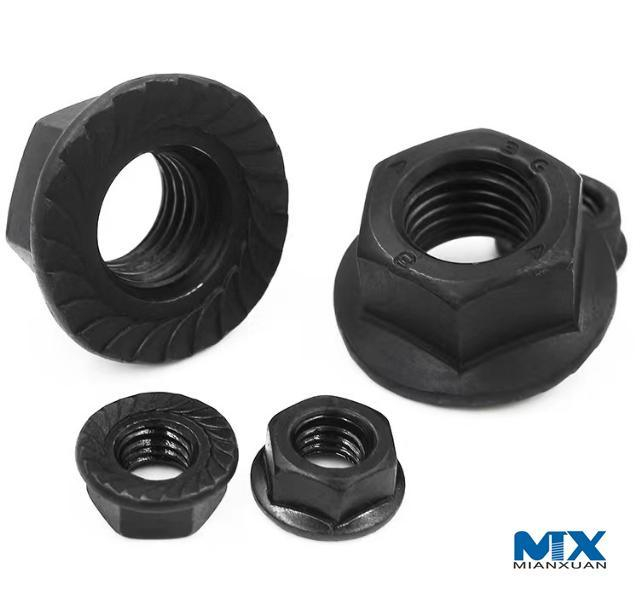

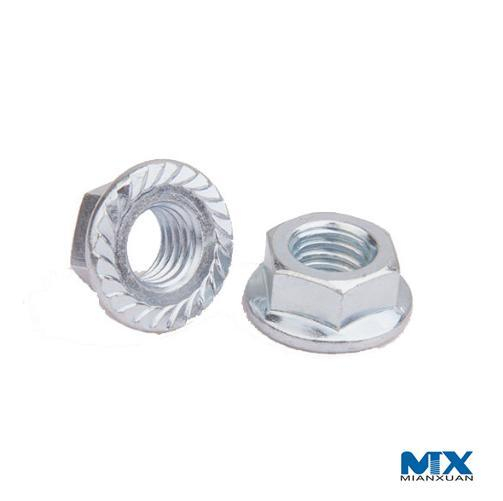

Prevailing Torque Type All-Metal Hexagon Nuts with Flange

  • Carbon Steel

  • Hexagon Head

  • Common Bolt

Availability:

Product Description

Prevailing Torque Type All-Metal Hexagon Nuts With Flange
Product Description


D
M5 M6 M8 M10 M12 (M14) M16 M20
P
c
da
dc
dw
e
h
m
mw
s
r
0.8 1 1.25 1.5 1.75 2 2 2.5
1 1.1 1.2 1.5 1.8 2.1 2.4 3
5 6 8 10 12 14 16 20
5.75 6.75 8.75 10.8 13 15.1 17.3 21.6
11.8 14.2 17.9 21.8 26 29.9 34.5 42.8
9.8 12.2 15.8 19.6 23.8 27.6 31.9 39.9
8.79 11.05 14.38 17.77 20.03 23.36 26.75 32.95
6.2 7.3 9.4 11.4 13.8 15.9 18.3 22.4
5.7 6.8 8.74 10.34 12.57 14.8 17.2 20.3
4.7 5.7 7.6 9.6 11.6 13.3 15.3 18.7
2.5 3.1 4.6 5.9 6.8 7.7 8.9 10.7
8 10 13 16 18 21 24 30
7.78 9.78 12.73 15.73 17.73 20.67 23.67 29.16
0.3 0.36 0.48 0.6 0.72 0.88 0.96 1.2
EN1664 class 4 6 8 A2/A4/A4L, surface with zinc plated/black/plain/GEOMET/YZP
* Good service / Reasonable price / Best quality .
* Customized products are also welcomed .
*Material:Carbon steel and Stainless Steel.
Company Profile


NINGBO MIANXUAN FASTENERS CO.,LTD. is a professional exporter specialized in fasteners products and located in Ningbo ,a beautiful city bordering on the East China Sea . The main products include various kinds of Bolts,Screws ,Nuts,Thread Rods,Stamping Parts that conform to the DIN,ISO, ANSI ,ASME ,BSW, J IS standards. The company also customizes non-standard items according to customer's requirements and specifications.

After a continuous creation and developmeht of last several years ,the company has accomplished great achievements and achieved a high degree of credibility through untiring endeavor. Our sales areas mainly cover Europe,North America and South America ,Russia,Mid-East ,Asia etc.

We are looking forward to establishing business relationship with customers from all over the world for mutual development and a prosperous future.
