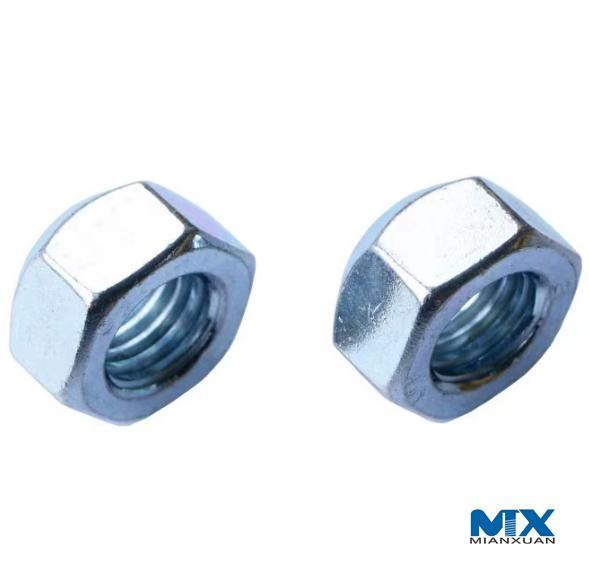

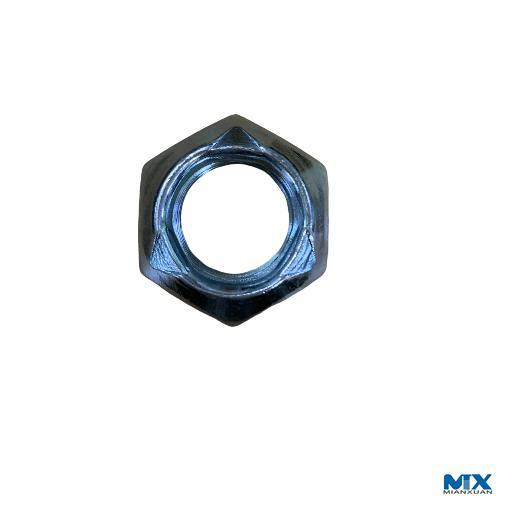

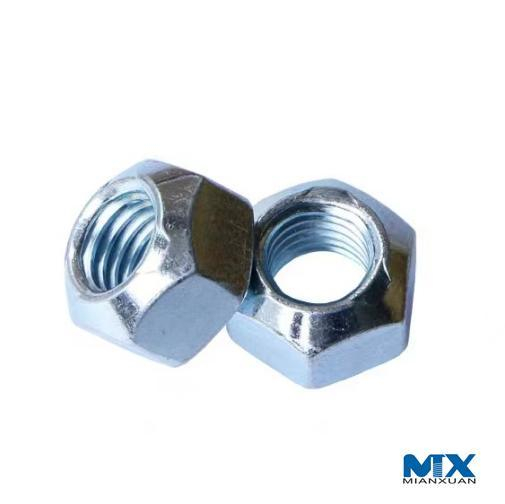

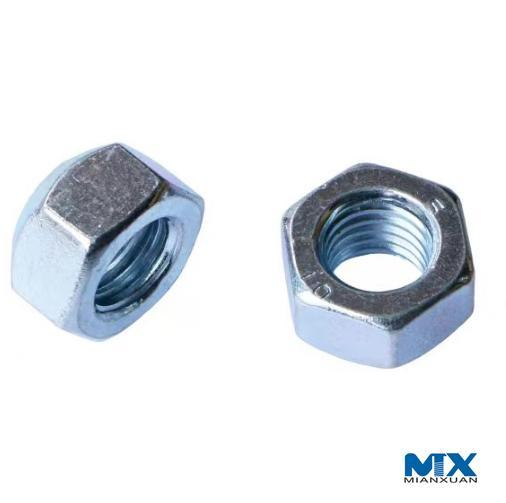

Prevailing Torque Type All-Metal Hexagon High Nuts with Metric Fine Pitch Thread

  • Carbon Steel

  • Hexagon Head

  • Common Bolt

Availability:

Product Description

Prevailing Torque Type All-Metal Hexagon High Nuts With Metric Fine Pitch Thread
Product Description


d
M8 M10 M12 (M14) M16 M20 M24 M30 M36
P 1
2
da
dw
e
h
mw
s
1 1 1.25 1.5 1.5 1.5 2 2 3
/ 1.25 1.5 / / / / / /
8.75 10.80 13.00 15.10 17.30 21.60 25.90 32.40 38.90
8.00 10.00 12.00 14.00 16.00 20.00 24.00 30.00 36.00
11.63 14.63 16.63 19.64 22.49 27.7 33.25 42.75 51.11
14.38 17.77 20.03 23.36 26.75 32.95 39.55 50.85 60.79
8 10 13.3 14.1 16.4 20.3 23.9 30 36
7.14 8.94 11.57 13.4 15.7 19 22.6 27.3 33.1
5.15 6.43 8.30 9.68 11.28 13.52 16.16 19.44 23.52
13 16 18 21 24 30 36 46 55
12.73 15.73 17.73 20.67 23.67 29.16 35 45 53.8
ISO10513 class 8 10 12 A2/A4/A4L, surface with zinc plated/black/plain/GEOMET/YZP
* Good service / Reasonable price / Best quality .
* Customized products are also welcomed .
*Material:Carbon steel and Stainless Steel.
Company Profile


NINGBO MIANXUAN FASTENERS CO.,LTD. is a professional exporter specialized in fasteners products and located in Ningbo ,a beautiful city bordering on the East China Sea . The main products include various kinds of Bolts,Screws ,Nuts,Thread Rods,Stamping Parts that conform to the DIN,ISO, ANSI ,ASME ,BSW, J IS standards. The company also customizes non-standard items according to customer's requirements and specifications.

After a continuous creation and developmeht of last several years ,the company has accomplished great achievements and achieved a high degree of credibility through untiring endeavor. Our sales areas mainly cover Europe,North America and South America ,Russia,Mid-East ,Asia etc.

We are looking forward to establishing business relationship with customers from all over the world for mutual development and a prosperous future.
Prevailing Torque Type All-Metal Hexagon High Nuts with Metric Fine Pitch ThreadPrevailing Torque Type All-Metal Hexagon High Nuts with Metric Fine Pitch ThreadPrevailing Torque Type All-Metal Hexagon High Nuts with Metric Fine Pitch ThreadPrevailing Torque Type All-Metal Hexagon High Nuts with Metric Fine Pitch ThreadPrevailing Torque Type All-Metal Hexagon High Nuts with Metric Fine Pitch Thread
