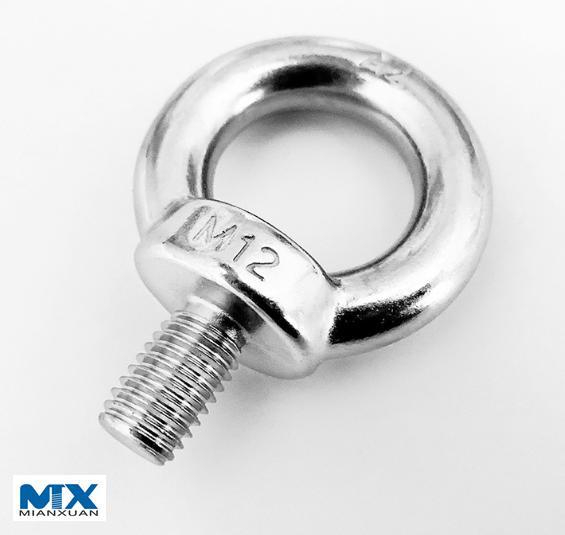

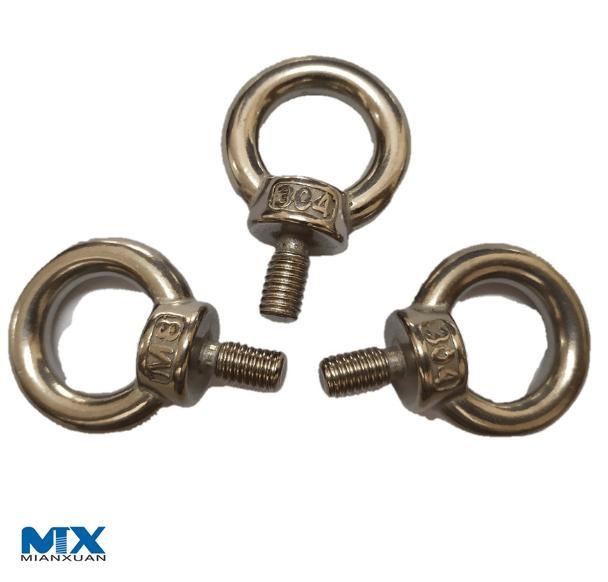

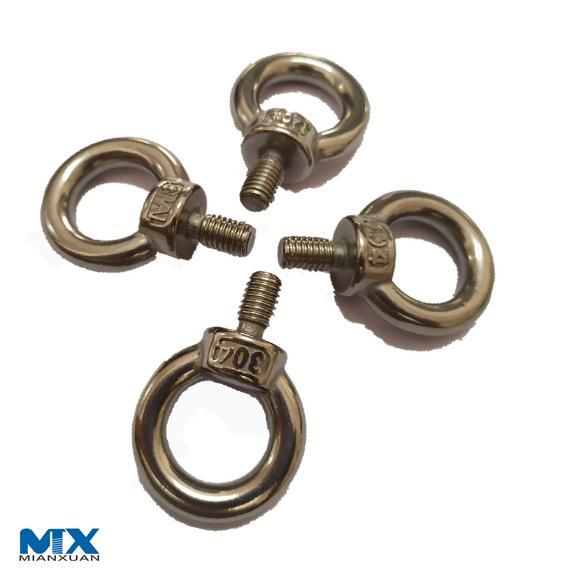

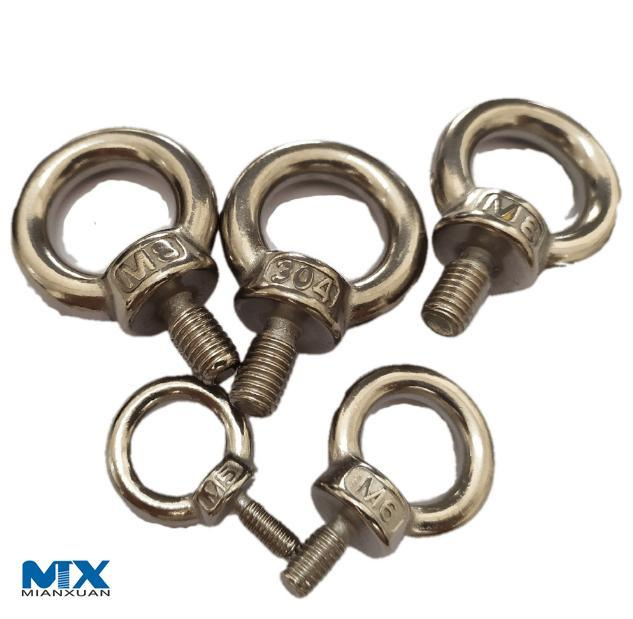

Lifting Eye Bolts for Construction

Material:
Carbon Steel
Type:
Hexagon Head
Connection:
Common Bolt

Availability:



Inquire Add to Basket

Product Description

Product Description

Lifting Eye Bolts

d

M6

M8

M10

M12

M14

M16

M18

M20

M22

M24

M27

M30

M33

d₂


d₃


d₄


e


f
d_s	= (h15)
d_s
h


k


L	(js15)


m


r	≈
()≈kg

20.0	20.0	25.0	30.0	35.0	35.0	40.0	40.0	50.0	50.0	65.0	65.0	75.0
19.5	19.5	24.5	29.5	34.5	34.5	39.5	39.5	49.4	49.4	64.3	64.3	74.3
20.9	20.9	25.9	30.9	36.1	36.1	41.1	41.1	51.2	51.2	66.3	66.3	76.5
36.0	36.0	45.0	54.0	63.0	63.0	72.0	72.0	90.0	90.0	108.0	108.0	126.0
35.5	35.5	44.5	53.5	62.5	62.5	71.5	71.5	89.4	89.4	107.3	107.3	125.2
37.1	37.1	46.1	55.1	64.1	64.1	73.1	73.1	91.2	91.2	109.5	109.5	127.7
20.0	20.0	25.0	30.0	35.0	35.0	40.0	40.0	50.0	50.0	60.0	60.0	70.0
19.1	19.1	24.1	29.1	33.9	33.9	38.9	38.9	48.8	48.8	58.7	58.7	68.5
20.5	20.5	25.5	30.5	35.5	35.5	40.5	40.5	50.6	50.6	60.7	60.7	70.7
6	6	8	10	12	12	14	14	18	18	22	22	26
5.5	5.5	7.5	9.5	11.5	11.5	13.5	13.5	17.5	17.5	21.4	21.4	25.3
6.9	6.9	8.9	10.9	12.9	12.9	14.9	14.9	19.1	19.1	23.2	23.2	27.3
2.5	2.5	3	3.5	4	4	5	5	6	6	7	7	8
4.4	6.0	7.7	9.4	11.0	13.0	14.4	16.4	18.4	19.6	22.6	25.0	28.0
4.22	5.82	7.48	9.18	10.73	12.73	14.13	16.13	18.07	19.27	22.29	24.67	27.61
36	36	45	53	62	62	71	71	90	90	109	109	128
35.5	35.5	44.5	52.5	61.5	61.5	70.5	70.5	89.4	89.4	108.3	108.3	127.2
37.1	37.1	46.1	54.1	63.1	63.1	72.1	72.1	91.2	91.2	110.5	110.5	129.7
8.0	8.0	10.0	12.0	14.0	14.0	16.0	16.0	20.0	20.0	24.0	24.0	28.0
7.5	7.5	9.5	11.5	13.5	13.5	15.5	15.5	19.5	19.5	23.4	23.4	27.3
8.9	8.9	10.9	12.9	14.9	14.9	16.9	16.9	21.1	21.1	25.2	25.2	29.3
13.0	13.0	17.0	20.5	27.0	27.0	30.0	30.0	36.0	36.0	45.0	45.0	54.0
12.65	12.65	16.65	20.08	26.58	26.58	29.58	29.58	35.5	35.5	44.5	44.5	53.5
13.35	13.35	17.35	20.92	27.42	27.42	30.42	30.42	36.5	36.5	45.5	45.5	54.5
10	10	12	14	16	16	19	19	24	24	28	28	32
9.5	9.5	11.5	13.5	15.5	15.5	18.5	18.5	23.5	23.5	27.4	27.4	31.3
10.9	10.9	12.9	14.9	16.9	16.9	19.9	19.9	25.1	25.1	29.2	29.2	33.3
4	4	4	6	6	6	8	8	12	12	15	15	18
0.0572	0.06	0.11	0.18	0.27	0.28	0.438	0.45	0.725	0.74	1.624	1.66	2.596

DIN580 M5-M56
Class: 4.8 8.8 10.9 12.9
Finishing: Black, Phosphate, Zinc, HDG, Dacromet, Geomet
Material: Q195, 35K, 45K, 40Cr, 35Crmo, 42Crmo, B7, SS304, SS316
Packing: Small box, Bulk, Euro-pallets, special label/box etc.

Lead time: 30-50 days.

In case you need more info pls contact us without hesitate.
Welcome send us inquiry!
Inquirires will be offered on same day or by the 2nd working day!
