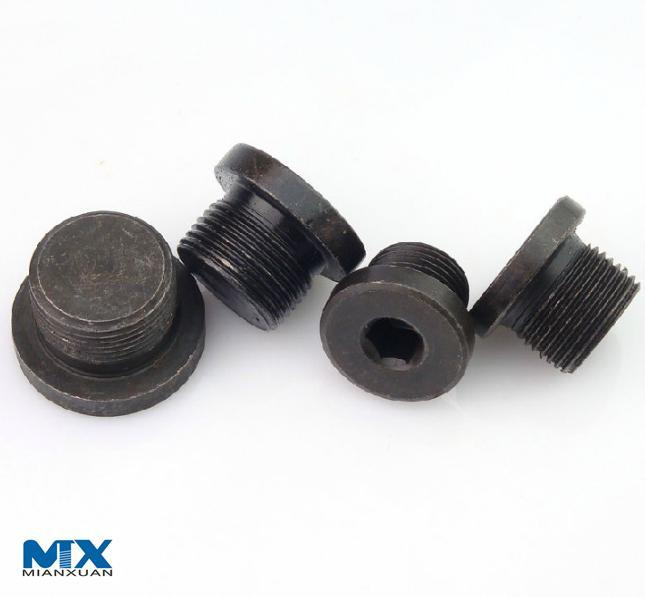

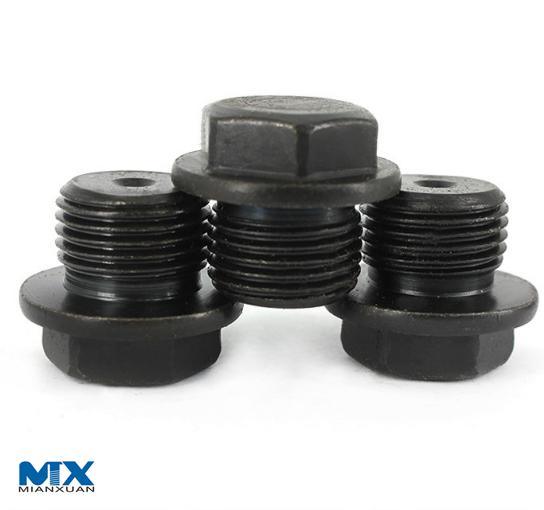

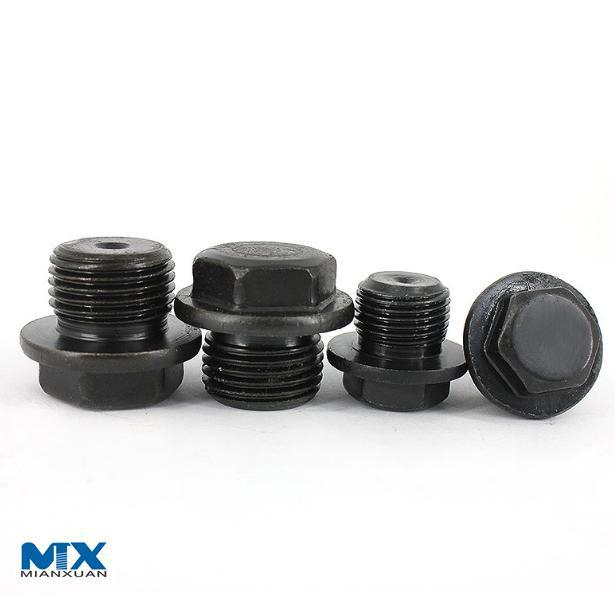

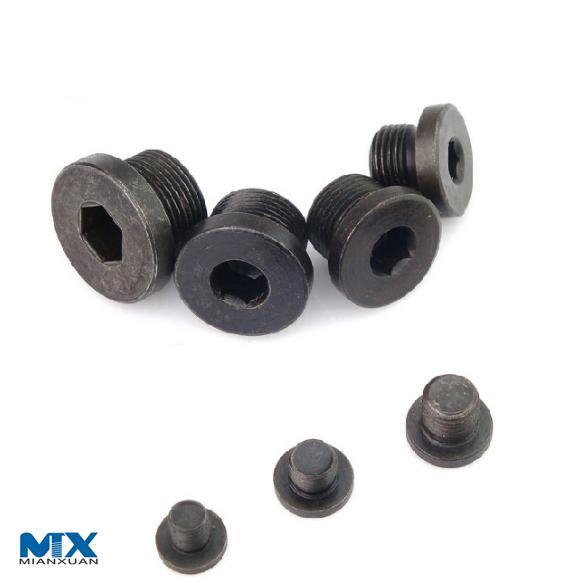

Internal Drive Screw Plugs with Collar - Cylindrical Thread

Share to:

Internal Drive Screw Plugs with Collar - Cylindrical Thread

Material:
Carbon Steel
Type:
Round Head
Groove:
Socket

Availability:



Inquire Add to Basket

Product Description

Product Description

Internal Drive Screw Plugs with Collar - Cylindrical Thread
DIN908

d

M10
G1/8A

M12

G1/4A

M14

M16

G3/8A

M18

M20

G1/2A

M22

M24

M26

M27
G3/4A

d
P		1
		2
k	=

d_k	= (h14)

i	± 0.2
L	≈
e
s


t₁
	DIN EN ISO 10664
A	DIN EN ISO 10664
B	DIN EN ISO 10664
t₂
	DIN 34824
c	DIN 34824

t₃
w
kg	≈

G1/8A	-	G1/4A	-	-	G3/8A	-	-	G1/2A	-	-	-	G3/4A
1	1.5	-	1.5	1.5	-	1.5	1.5	-	1.5	1.5	1.5	2
-	-	-	-	-	-	-	-	-	-	-	-	-
3	3	3	3	3	3	4	4	4	4	4	4	4
3.5	3.5	3.5	3.5	3.5	3.5	4.5	4.5	4.5	4.5	4.5	4.5	4.5
14	17	18	19	21	22	23	25	26	27	29	31	32
13.57	16.57	17.57	18.48	20.48	21.48	22.48	24.48	25.48	26.48	28.48	30.38	31.38
8	12	12	12	12	12	12	14	14	14	14	16	16
11	15	15	15	15	15	16	18	18	18	18	20	20
5.723	6.863	6.863	6.863	9.149	9.149	9.149	11.429	11.429	11.429	13.716	13.716	13.716
5	6	6	6	8	8	8	10	10	10	12	12	12
5.095	6.14	6.14	6.14	8.175	8.175	8.175	10.175	10.175	10.175	12.212	12.212	12.212
5.02	6.02	6.02	6.02	8.025	8.025	8.025	10.025	10.025	10.025	12.032	12.032	12.032
5	7	7	7	7.5	7.5	7.5	7.5	7.5	7.5	7.5	9	9
30	40	40	45	50	50	50	55	55	55	60	60	60
5.6	6.75	6.75	7.93	8.95	8.95	8.95	11.35	11.35	11.35	13.45	13.45	13.45
4.05	4.85	4.85	5.64	6.45	6.45	6.45	8.05	8.05	8.05	9.6	9.6	9.6
2.5	2.7	2.7	2.9	3.7	3.7	3.7	4.6	4.6	5.4	6.4	6.4	6.4
N6	N8	N8	N8	N10	N10	N10	N12	N12	N14	N16	N16	N16
6.16	7.4	7.4	7.4	9.84	9.84	9.84	11.7	11.7	13.54	15.99	15.99	15.99
6.06	7.28	7.28	7.28	9.69	9.69	9.69	11.51	11.51	13.32	15.73	15.73	15.73
2.5	2.9	2.9	2.9	3.7	3.7	3.7	4.6	4.6	5.4	6.4	6.4	6.4
3	3	3	3	3	3	3	4	4	4	4	4	4
6.3	11.3	14.6	16	19	21.4	28.3	37.5	40.8	47.5	53.5	68.7	73.5

Our price is very competitive and I hope to gain a chance to quote for you our best price.

Lead time: 30-50 days.

Surface could be Black/SS/zinc plated/ YZP
In case you need more info pls contact us without hesitate.
Welcome send us inquiry!
Inquirires will be offered on same day or by the 2nd working day!
