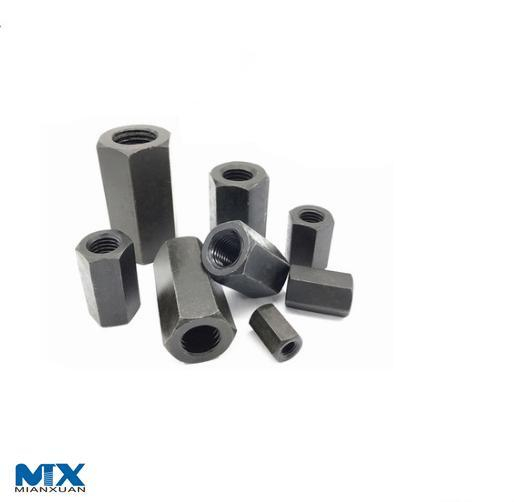

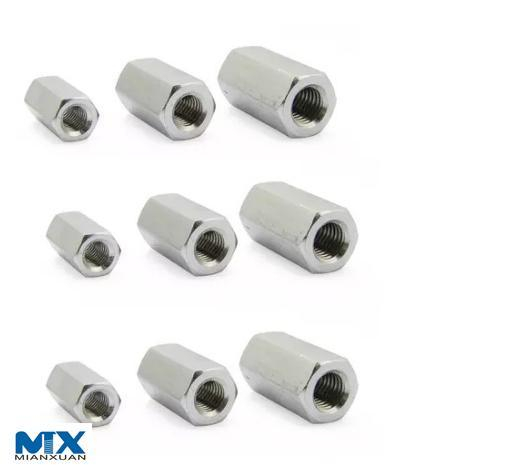

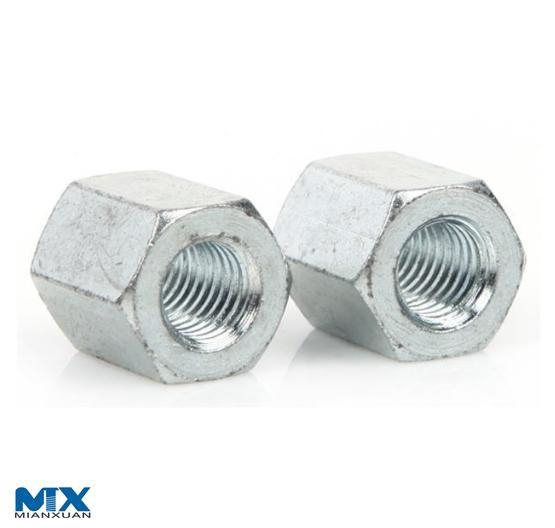

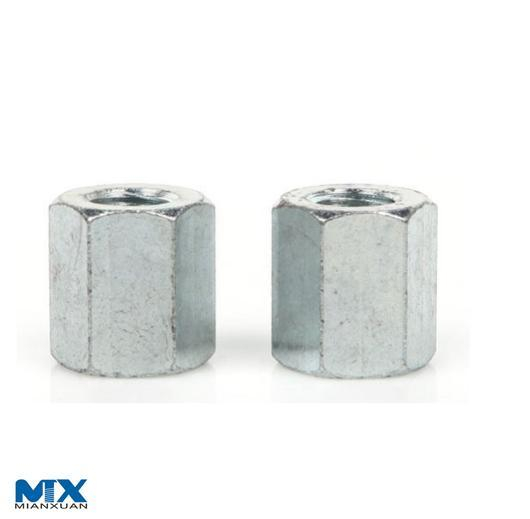

Hexagon Nuts with a Height of 1.5D

  • Carbon Steel

  • Hexagon Head

  • Common Bolt

Availability:

Product Description

Hexagon Nuts with a Height of 1.5d
Product Description


d
M6 M8 M10 M12 M16 M20 M24 M30 M36 M42 M48
P
m (js15)
s =
e
()≈kg
1 1.25 1.5 1.75 2 2.5 3 3.5 4 4.5 5
9 12 15 18 24 30 36 45 54 63 72
9.29 12.35 15.35 18.35 24.42 30.42 36.5 45.5 54.6 63.6 72.6
8.71 11.65 14.65 17.65 23.58 29.58 35.5 44.5 53.4 62.4 71.4
10 13 16 18 24 30 36 46 55 65 75
9.78 12.73 15.73 17.73 23.67 29.67 35.38 45.38 54.26 64.26 74.26
11.05 14.38 17.77 20.03 26.75 33.53 39.98 51.28 61.31 72.61 83.91
4 9 17 24 57 107 187 395 679 1140 1780
DIN6330 class 6 8 10 A2/A4/A4L, surface with zinc plated/black/plain/GEOMET/YZP
* Good service / Reasonable price / Best quality .
* Customized products are also welcomed .
*Material:Carbon steel and Stainless Steel.
Company Profile


NINGBO MIANXUAN FASTENERS CO.,LTD. is a professional exporter specialized in fasteners products and located in Ningbo ,a beautiful city bordering on the East China Sea . The main products include various kinds of Bolts,Screws ,Nuts,Thread Rods,Stamping Parts that conform to the DIN,ISO, ANSI ,ASME ,BSW, J IS standards. The company also customizes non-standard items according to customer's requirements and specifications.

After a continuous creation and developmeht of last several years ,the company has accomplished great achievements and achieved a high degree of credibility through untiring endeavor. Our sales areas mainly cover Europe,North America and South America ,Russia,Mid-East ,Asia etc.

We are looking forward to establishing business relationship with customers from all over the world for mutual development and a prosperous future.
Hexagon Nuts with a Height of 1.5DHexagon Nuts with a Height of 1.5DHexagon Nuts with a Height of 1.5DHexagon Nuts with a Height of 1.5DHexagon Nuts with a Height of 1.5D
