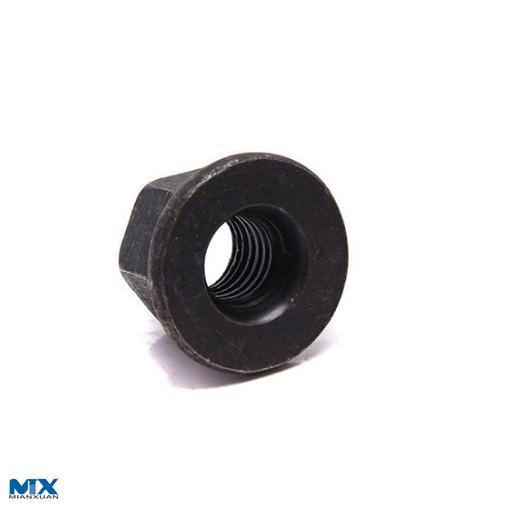

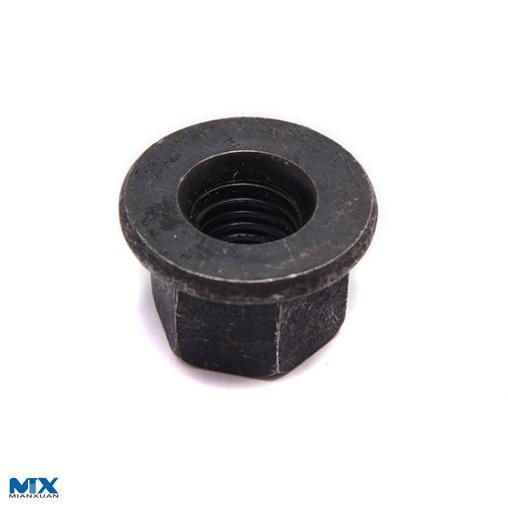

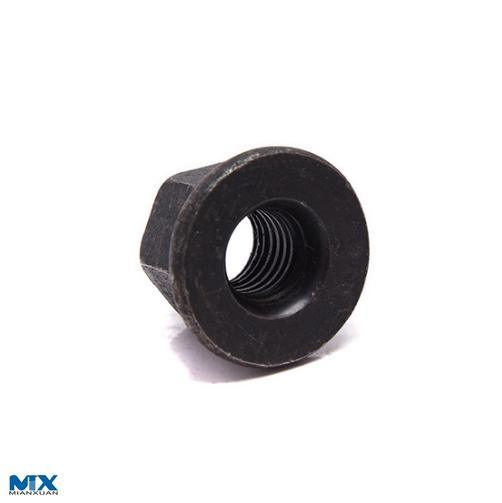

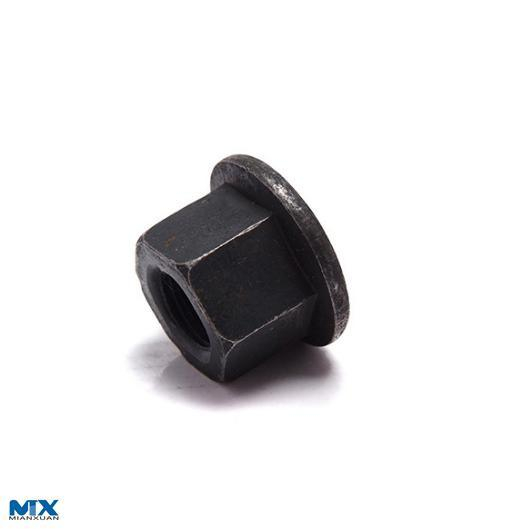

Hexagon Collar Nuts with a Height of 1.5D

Share to:

Hexagon Collar Nuts with a Height of 1.5D

Material:
Carbon Steel
Type:
Hexagon Head
Connection:
Common Bolt

Availability:



Inquire Add to Basket

Product Description

Product Description

Hexagon Collar Nuts with a Height of 1.5d

d

M6

M8

M10

M12

M16

M20

M24

M27

M30

M36

M42

M48

P
h	(js14)


d_c	= (h13)
d_c
k	(js15)


s	=
s
e
()≈kg

1	1.25	1.5	1.75	2	2.5	3	3	3.5	4	4.5	5
3	3.5	4	4	5	6	6	7	8	10	12	14
3.125	3.65	4.15	4.15	5.15	6.15	6.15	7.18	8.18	10.18	12.215	14.215
2.875	3.35	3.85	3.85	4.85	5.85	5.85	6.82	7.82	9.82	11.785	13.785
14	18	22	25	31	37	45	50	58	68	80	92
13.73	17.73	21.67	24.67	30.61	36.61	44.61	49.61	57.54	67.54	79.54	91.46
9	12	15	18	24	30	36	40	45	54	63	72
9.29	12.35	15.35	18.35	24.42	30.42	36.5	40.5	45.5	54.6	63.6	72.6
8.71	11.65	14.65	17.65	23.58	29.58	35.5	39.5	44.5	53.4	62.4	71.4
10	13	16	18	24	30	36	41	46	55	65	75
9.78	12.73	15.73	17.73	23.67	29.67	35.38	40.38	45.38	54.26	64.26	74.26
11.05	14.38	17.77	20.03	26.75	33.53	39.98	45.63	51.28	61.31	72.61	83.91
6	12	22	30	68	124	219	320	464	790	1290	1970

DIN6331 class 6 8 10 A2/A4/A4L, surface with zinc plated/black/plain/GEOMET/YZP

* Good service / Reasonable price / Best quality .
* Customized products are also welcomed .
*Material:Carbon steel and Stainless Steel.
