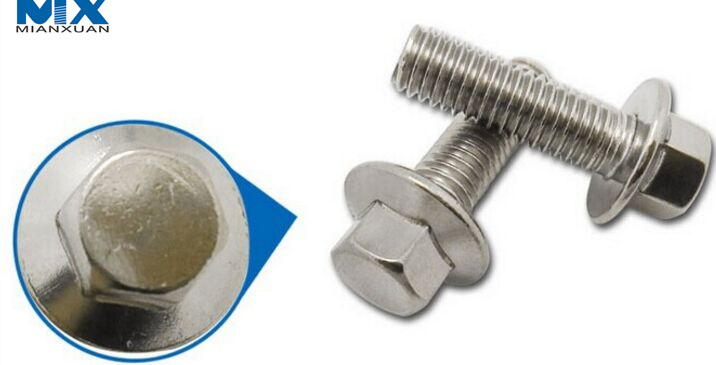

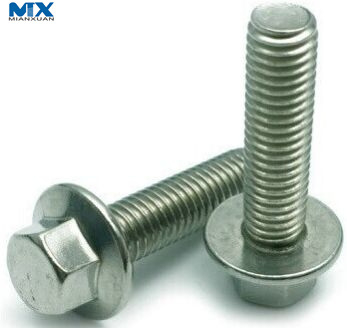

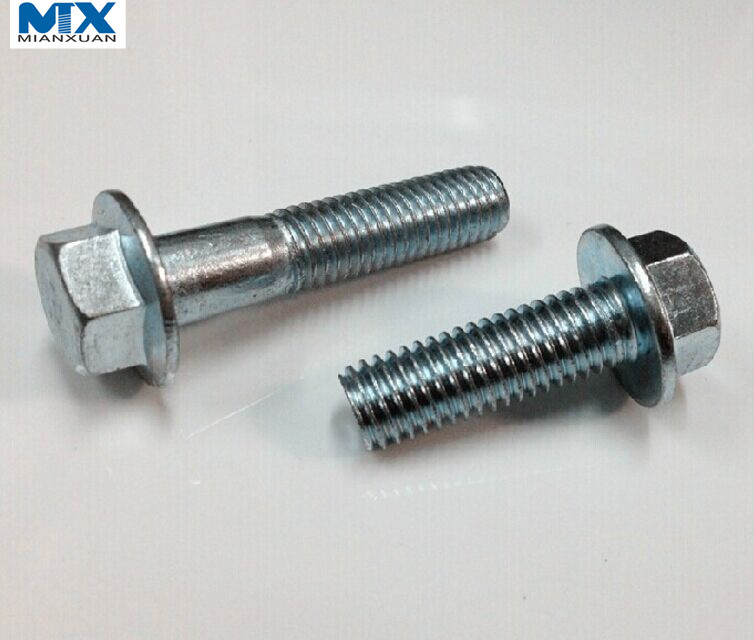

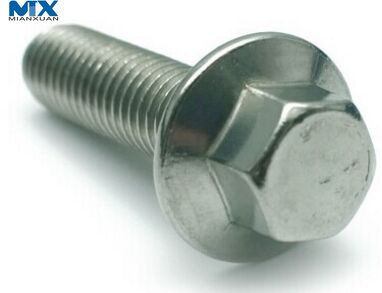

Hex Bolts with Flange Under Head Knurled

Share to:

Hex Bolts with Flange Under Head Knurled

Material:
Carbon Steel
Type:
Hexagon Head With Flange
Connection:
Common Bolt

Availability:



Inquire Add to Basket

Product Description

Product Description

Hex bolts

d

M5

M6

M8

M10

M12

M14

M16

M20

P
		1
		2
b	L≤125
	125
	L>200
c
d_a	A
	B
d_c
d_s

d_u
d_w
e
f
k
k₁
r₁
r₂
r₃
r₄	≈
s	=

t

0.8	1	1.25	1.5	1.75	2	2	2.5
/	/	1	1.25	1.5	1.5	1.5	1.5
/	/	/	1	1.25	/	/	/
16	18	22	26	30	34	38	46
/	/	28	32	36	40	44	52
/	/	/	/	/	/	57	65
1	1.1	1.2	1.5	1.8	2.1	2.4	3
5.7	6.8	9.2	11.2	13.7	15.7	17.7	22.4
6.2	7.4	10	12.6	15.2	17.7	20.7	25.7
11.8	14.2	18	22.3	26.6	30.5	35	43
5	6	8	10	12	14	16	20
4.82	5.82	7.78	9.78	11.73	13.73	15.73	19.67
5.5	6.6	9	11	13.5	15.5	17.5	22
9.8	12.2	15.8	19.6	23.8	27.6	31.9	39.9
8.71	10.95	14.26	16.5	17.62	19.86	23.15	29.87
1.4	2	2	2	3	3	3	4
5.4	6.6	8.1	9.2	11.5	12.8	14.4	17.1
2	2.5	3.2	3.6	4.6	5.1	5.8	6.8
0.25	0.4	0.4	0.4	0.6	0.6	0.6	0.8
0.3	0.4	0.5	0.6	0.7	0.9	1	1.2
0.1	0.1	0.15	0.2	0.25	0.3	0.35	0.4
3	3.4	4.3	4.3	6.4	6.4	6.4	8.5
8	10	13	15	16	18	21	27
7.78	9.78	12.73	14.73	15.73	17.73	20.67	26.67
0.15	0.2	0.25	0.3	0.35	0.45	0.5	0.65
0.05	0.05	0.1	0.15	0.15	0.2	0.25	0.3

DIN931 DIN933 DIN960 DIN961 DIN558 DIN601 DIN7990 DIN603 DIN912 DIN7991 size from M5-M56
Class: 4.8 8.8 10.9 12.9
Finishing: Black, Phosphate, Zinc, HDG, Dacromet, Geomet
Material: Q195, 35K, 45K, 40Cr, 35Crmo, 42Crmo, B7, SS304, SS316
Packing: Small box, Bulk, Euro-pallets, special label/box etc.

Lead time: 30-50 days.

In case you need more info pls contact us without hesitate.
Welcome send us inquiry!
Inquirires will be offered on same day or by the 2nd working day!

NINGBO MIANXUAN FASTENERS CO.,LTD. is a professional exporter specialized in fasteners products and located in Ningbo ,a beautiful city bordering on the East China Sea . The main products include various kinds of Bolts,Screws ,Nuts,Thread Rods,Stamping Parts that conform to the DIN,ISO, ANSI ,ASME ,BSW, J IS standards. The company also customizes non-standard items according to customer's requirements and specifications.

After a continuous creation and developmeht of last several years ,the company has accomplished great achievements and achieved a high degree of credibility through untiring endeavor. Our sales areas mainly cover Europe,North America and South America ,Russia,Mid-East ,Asia etc.

We are looking forward to establishing business relationship with customers from all over the world for mutual development and a prosperous future.
