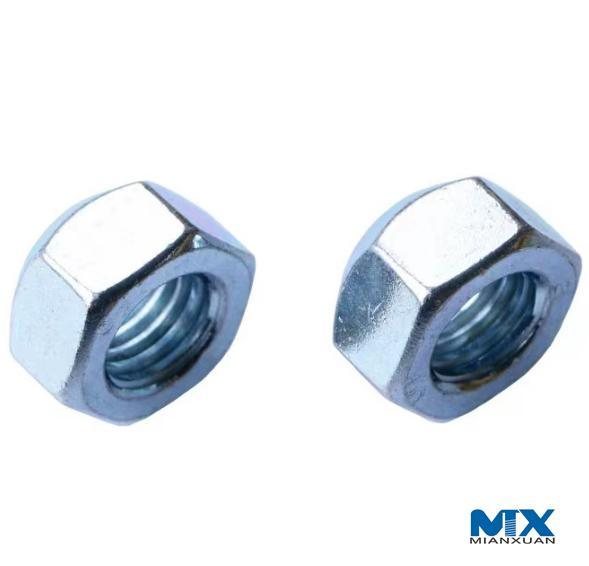

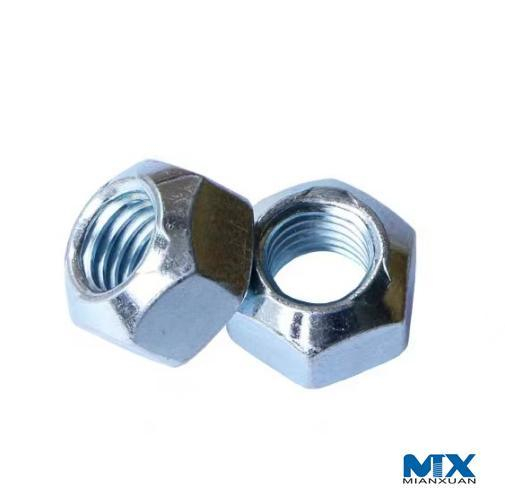

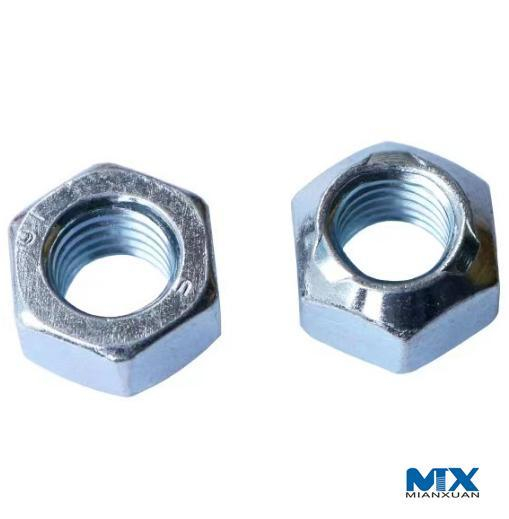

All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)

  • Carbon Steel

  • Hexagon Head

  • Common Bolt

Availability:
All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)
All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)
All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)
All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)
All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)
All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)

Product Description

All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)

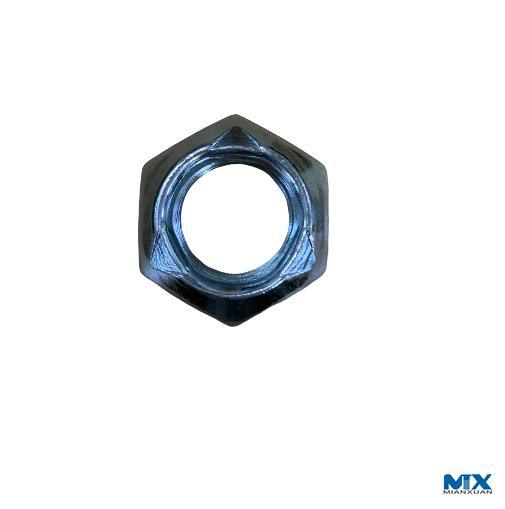

3 POINTS LOCKING
Product Parameters

d
M3 M4 M5 M6 M7 M8 M10 M12 M14 M16
P
1
2
da
dw
e
h =
mw
s =
0.5 0.7 0.8 1 1 1.25 1.5 1.75 2 2
/ / / / / 1 1 1.5 1.5 1.5
/ / / / / / 1.25 1.25 / /
3 4 5 6 7 8 10 12 14 16
3.45 4.6 5.75 6.75 7.75 8.75 10.8 13 15.1 17.3
4.6 5.9 6.9 8.9 9.6 11.6 15.6 17.4 20.5 22.5
6.01 7.66 8.79 11.05 12.12 14.38 18.9 21.1 24.49 26.75
3.7 4.2 5.1 6 7 8 10 12 14 16
3.4 3.9 4.8 5.7 6.5 7.5 9 11 12 14
1.65 2.2 2.75 3.3 3.85 4.4 5.5 6.6 7.7 8.8
5.5 7 8 10 11 13 17 19 22 24
5.32 6.78 7.78 9.78 10.73 12.73 16.73 18.67 21.67 23.67

d
M18 M20 M22 M24 M27 M30 M33 M36 M39
P
1
2
da
dw
e
h =
mw
s =
2.5 2.5 2.5 3 3 3.5 3.5 4 4
2 2 2 2 2 2 2 3 3
1.5 1.5 1.5 / / / / / /
18 20 22 24 27 30 33 36 39
19.5 21.6 23.7 25.9 29.1 32.4 35.6 38.9 42.1
24.9 27.7 29.5 33.2 38 42.7 46.6 51.1 55.9
29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44
18 20 22 24 27 30 33 36 39
16 18 20 22 25 28 31 34 37
9.9 11 12.2 13.2 14.8 16.5 18.2 19.8 21.5
27 30 32 36 41 46 50 55 60
26.16 29.16 31 35 40 45 49 53.8 58.8
DIN980V class 6 8 10/A2/A4/A4L, surface with zinc plated/black/plain/GEOMET/YZP
* Good service / Reasonable price / Best quality .
* Customized products are also welcomed .
*Material:Carbon steel and Stainless Steel.
Company Profile


NINGBO MIANXUAN FASTENERS CO.,LTD. is a professional exporter specialized in fasteners products and located in Ningbo ,a beautiful city bordering on the East China Sea . The main products include various kinds of Bolts,Screws ,Nuts,Thread Rods,Stamping Parts that conform to the DIN,ISO, ANSI ,ASME ,BSW, J IS standards. The company also customizes non-standard items according to customer's requirements and specifications.

After a continuous creation and developmeht of last several years ,the company has accomplished great achievements and achieved a high degree of credibility through untiring endeavor. Our sales areas mainly cover Europe,North America and South America ,Russia,Mid-East ,Asia etc.

We are looking forward to establishing business relationship with customers from all over the world for mutual development and a prosperous future.
All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)All-Metal Prevailing Torque Type Hexagon Nuts with Single Piece Metal (Type V)
